Log Max 7000C cutting head

Log Max 7000C combines high traction with fast feed speed and is one of our most popular heads.

FILES TO DOWNLOAD

Promotional materials and technical specifications of machines.
BROCHURE LOG MAX 13 MB

ADVANTAGES

machine 18 - 25 Tons
ø logs 16 - 50 cm
max. cut 75 cm

Roller motors

Feed speed

Feeding force

Max. opening rollers

Knife opening

Delimbing diameter

Saw bar

Max. cutting dia

Head width

Height

Weight

V-STELL / AGGRESSIVE

5.3 m/s

41,7 kN

713 mm

560 mm

40 – 560 mm

750 / 820 / 900 mm

750 mm

1315 mm

1742 mm

1646 kg

Harvester Head LogMax 7000C

Log Max 7000C combines high traction with fast feed speed and is one of our most popular heads. The traction and speed of the head are automatically adjusted depending on the size of the trees, which brings smooth log feeding and a good driving experience.

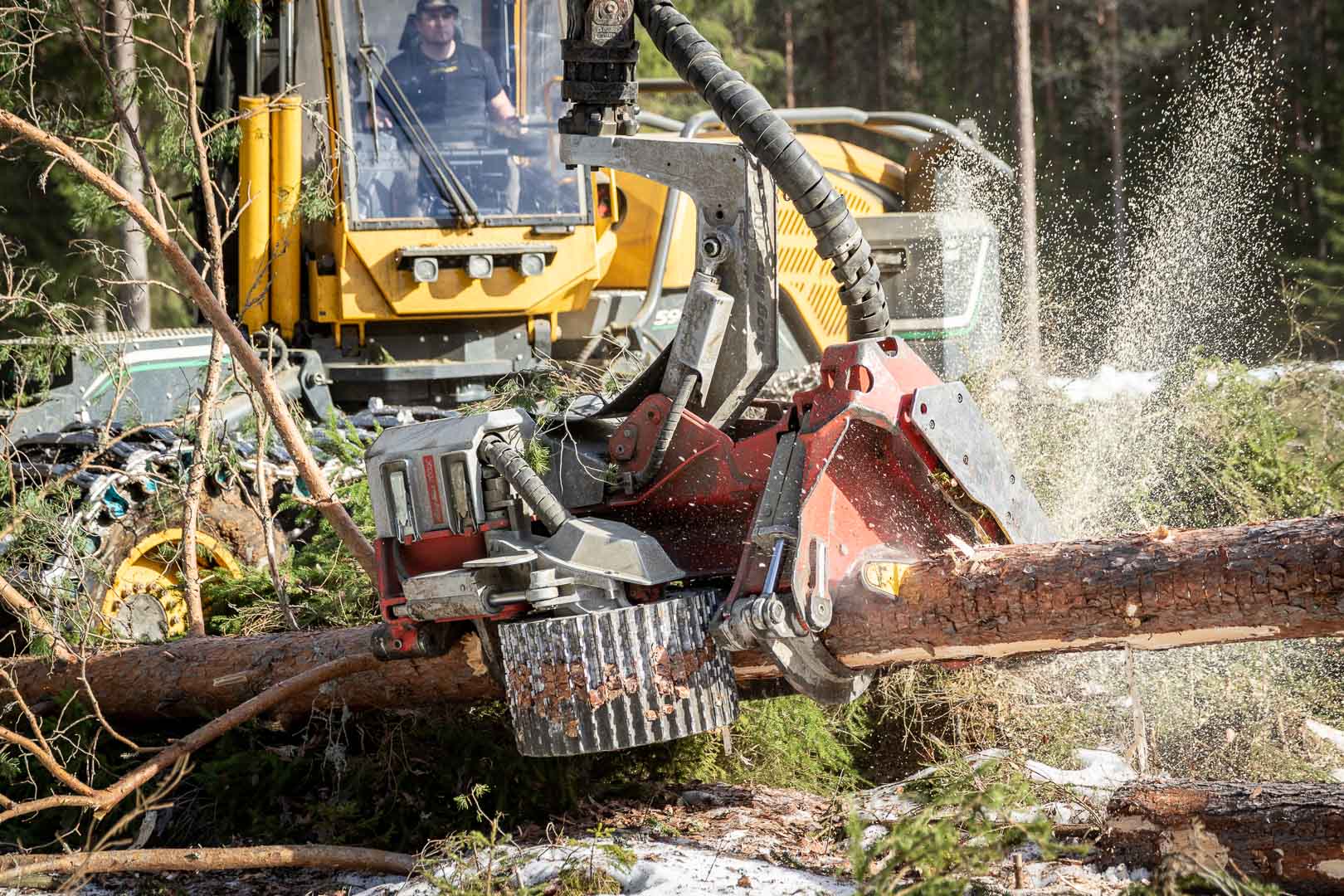

kaceci_hlavice_logmax_7000C_01

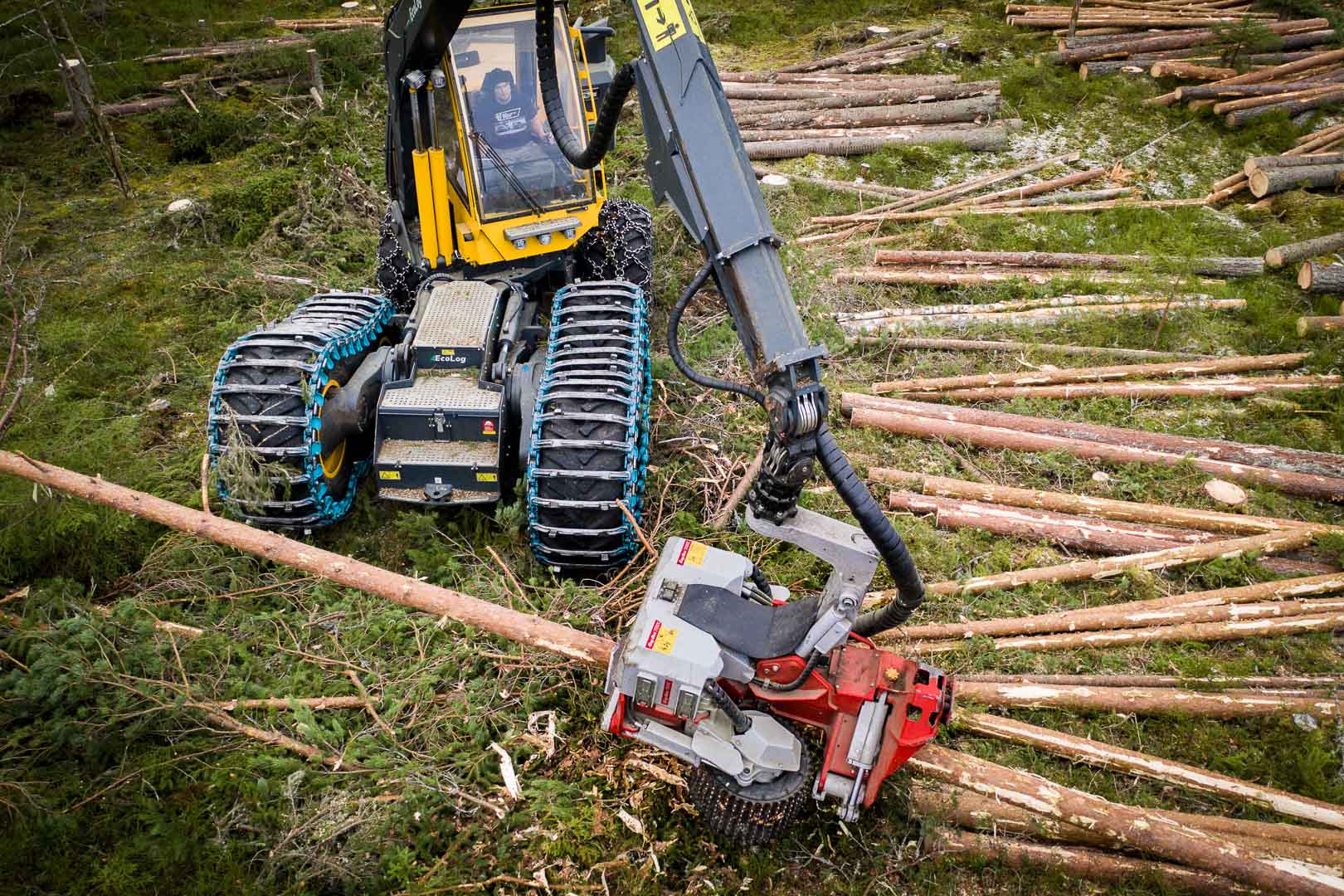

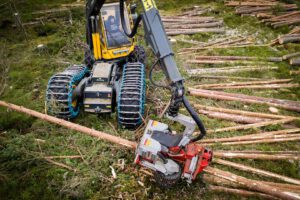

kaceci_hlavice_logmax_7000C_02
kaceci_hlavice_logmax_7000C_03

A great performer

Log Max 7000C is a very popular head that has been continually improved over the years.

It fits great in many forest types around the world and runs all over the world.

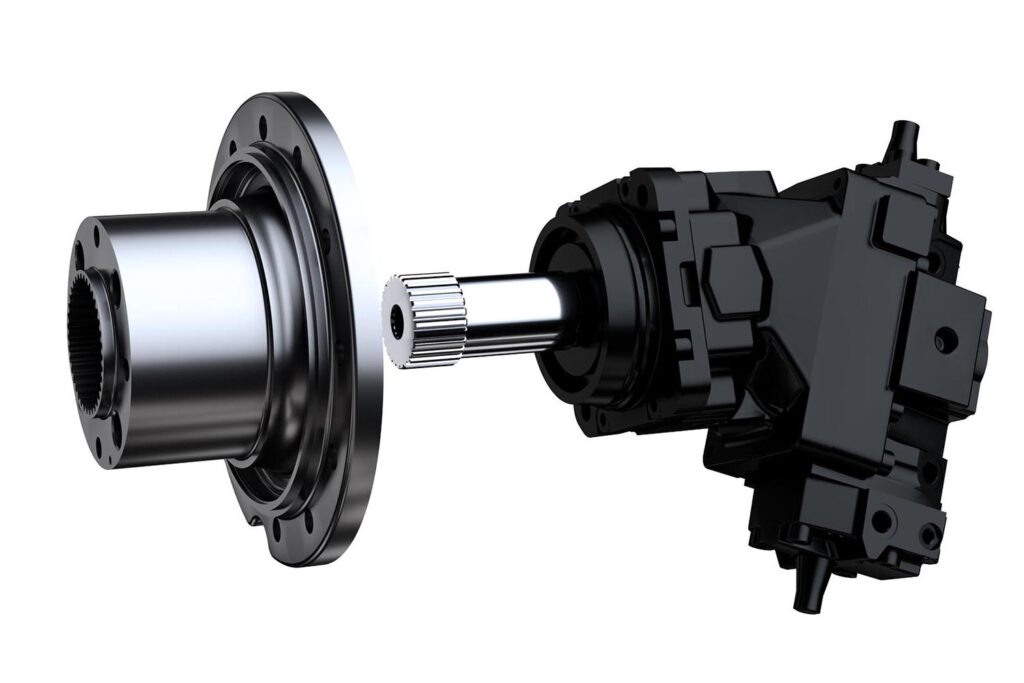

Smart feed roller motors

The feed roller motors have a variable displacement ranging between 830 and 1320 cc, this provides an automatic, dynamic adjustment of the feed speed and torque regardless of the log diameter.

If you work with small trees, you get a high feeding speed and when you work with larger diameter trees, higher torque is prioritized. This functionality provides a great user experience and also improves fuel consumption. This feature provides a great user experience and also improves fuel economy.

Link to the manufacturer’s website Log Max AB
