Roller motors
Feed speed
Feeding force
Max. Max. opening
Delimbing diameter
Bar length
Max. cutting
Chain speed
Head tilt
Width of head (closed)
Width of head (open)
Height
Weight
ROTTNE / MOIPU
0 – 5,2 m/s
37,1 kN
796 mm
50 – 570 mm
900 mm
680 – 810 mm
40 – 45 m/s
145°
1 554 mm
1 780 mm
1 642 mm
1 580 kg
Primarily designed for coarse final felling.

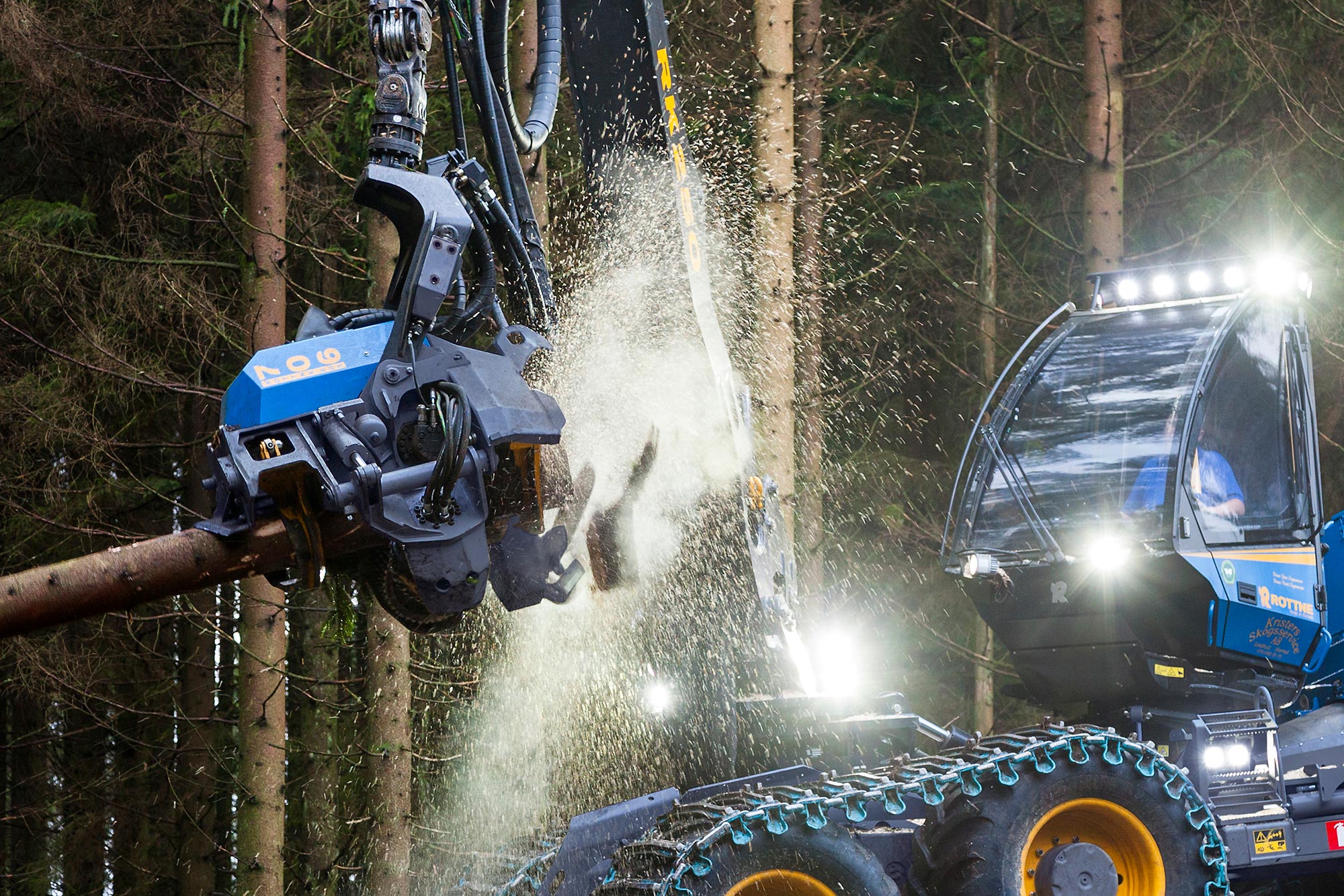

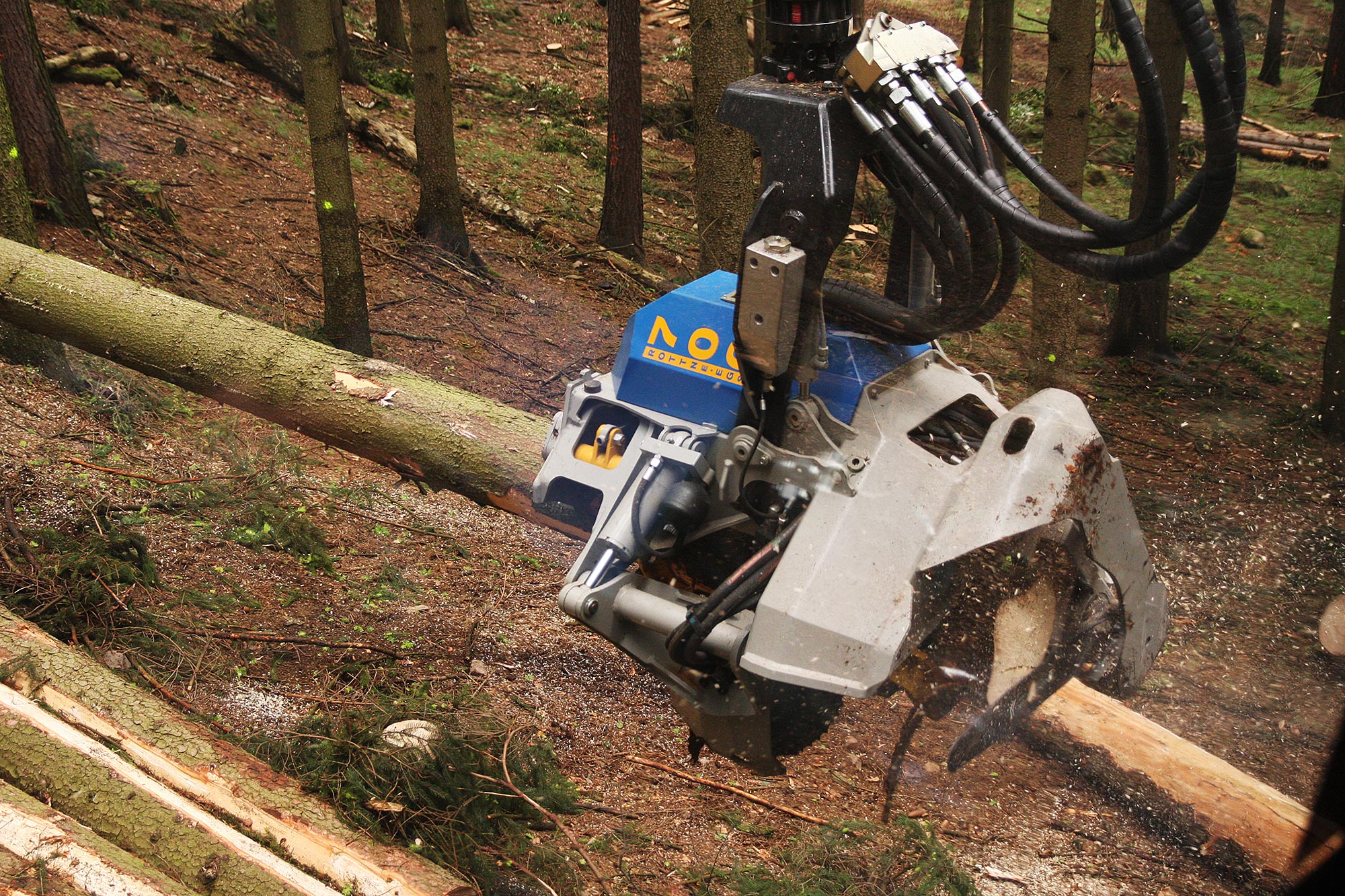

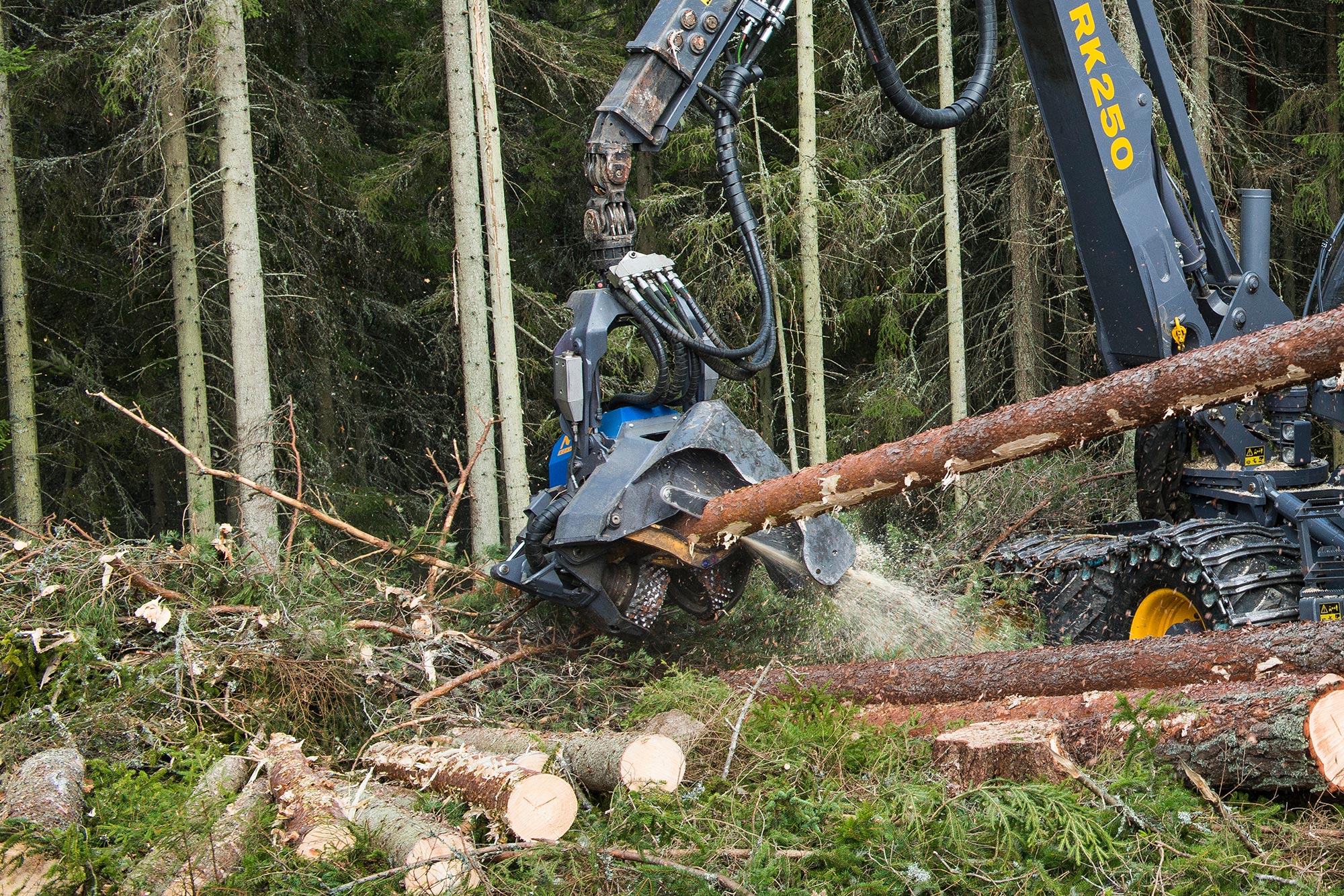

Harvester Head EGS 706

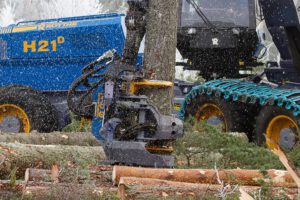

EGS706 is a robust harvester head for ROTTNE H21 with a cutting diameter of 75 cm and two-speed hydraulic feeder (3.5 m/s or 5.2 m/ sec).
Supporting wheel arms and five feed rollers that provide a steady grip even on the coarsest stems which facilitates the processing of heavy trees. The feed rate is automatically controlled, depending on tree size, which increases production capacity when felling in light stands. Diameter measurement is performed via a sensor in the upper limbing knives and length measurement is performed using a measuring wheel.
