Harvester Head SP 461

The SP 461 LF is a high-performance thinning head. It is an excellent choice for installation on both mid-size thinning carriers with a long crane as well as smaller in-stand thinning carriers.

DOWNLOAD

Promotional materials and technical specifications of machines.
TECHNICAL DATA 2 MB

Roller motors

Feed speed

Feeding force

Max. Max. opening

Opening of knifes

Delimbing diameter

Bar length

Max. cutting

Chain speed

Head tilt

Width of head (closed)

Width of head (open)

Height

Weight

Finnskogsvalsar Moipu

0 – 6 m/s

18 kN

420 mm

450 mm

30 – 350 mm

590 mm

530 mm

40 – 45 m/s

135°

850 mm

1 130 mm

1 230 mm

640 kg

SALES REPRESENTATIVE

David Stone
  • +420 724 323 326
  • stone@lesni-technika.cz
Send message
A big little harvester head

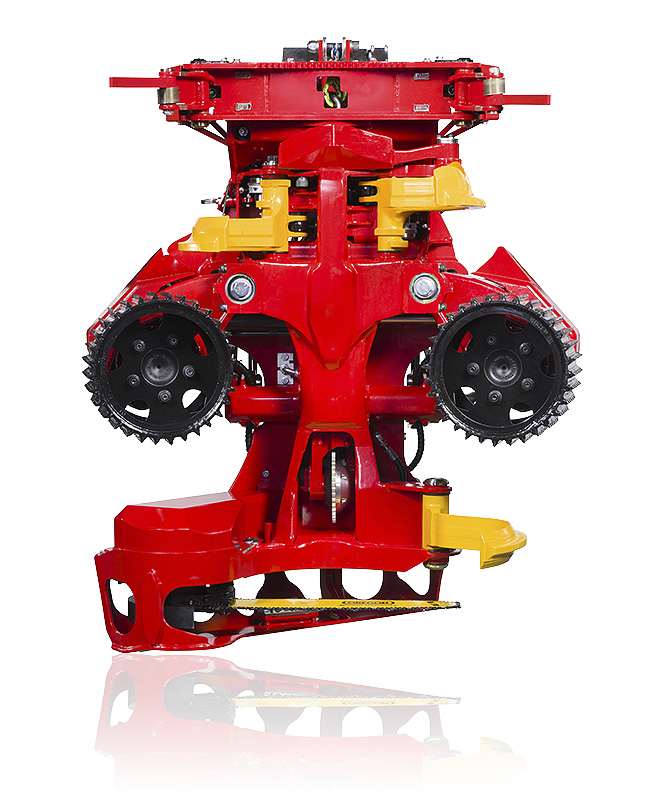

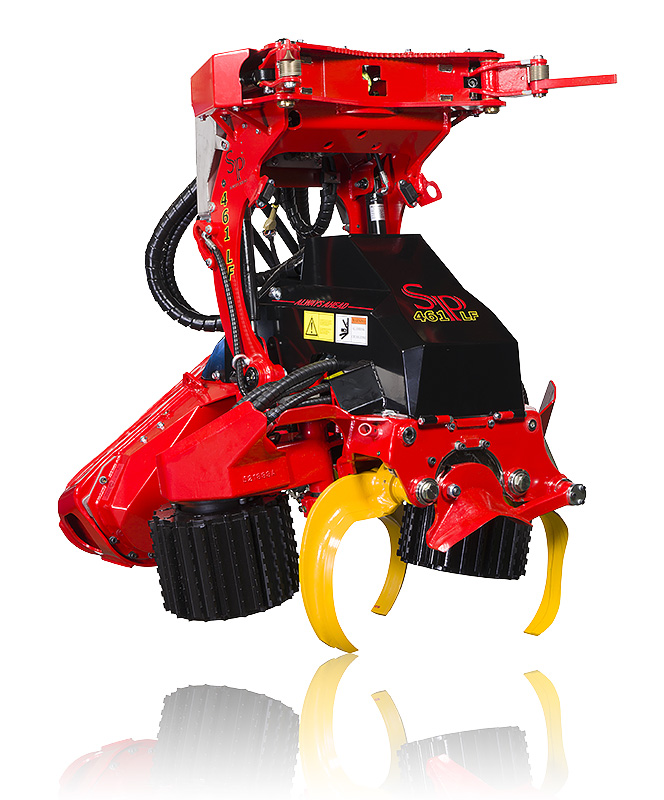

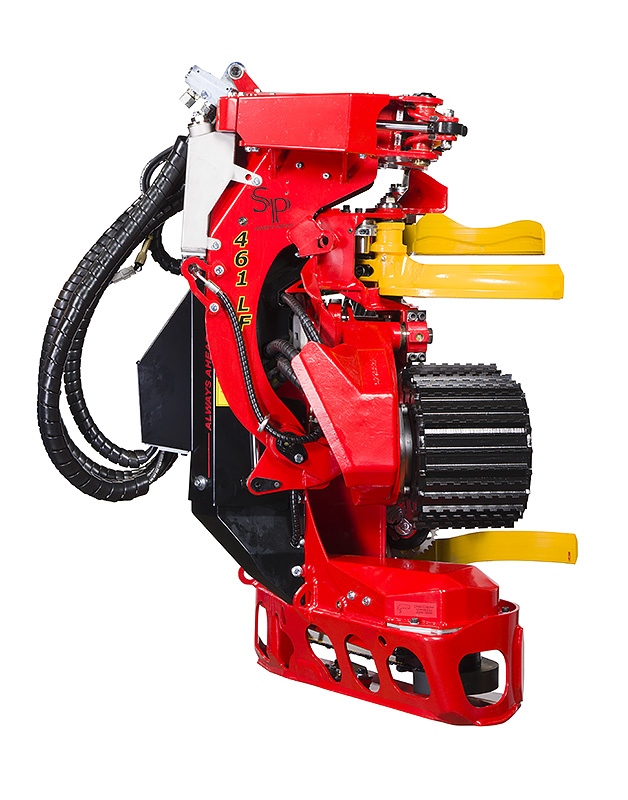

Harvester head SP 461 LF

The SP 461 LF is a very fast, nimble high performance harvester head. It is designed according to SP´s Low Friction principle for minimum friction and maximum productivity. The SP 461 LF is perfectly suited to work on midsize thinning carriers with long reach as well as smaller in stand thinning carriers.
SP_461
SP_461_2
SP_461_3

Fast feeding in combination with low weight and very compact measurements ensures highest efficiency and productivity even in dense small diameter thinning. In larger diameter thinning the clever SP patents LogHold and proportional angled feed rollers gives the SP 461 LF an impressive handling and capacity. The SP 461 LF is in all respects – a big little harvester head.

The SP 461 LF reaches top performance in stands with a diameter of 8 – 35cm (3 – 14”) dbh, but is thanks to the LF principle also capable of efficiently working with larger tree sizes.

Link to the manufacturer’s website SP Maskiner AB
