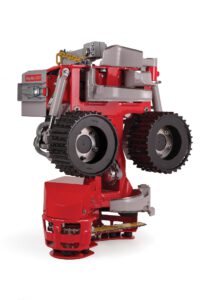

Harvester Head Log Max 2000T

Log Max 2000T is a compact head that offers excellent performance and reliability.
Kácecí hlavice Log Max 2000T

MAIN FEATURES

HARVESTER 6,5 - 13 tons
ø tree 6 - 25 cm
max cutting ø 41 cm

DOWNLOAD

Propagační materiály a technická specifikace strojů.
Log Max 2000T 8Mb
Heads Log Max 13 MB

Feed roller models

Feed speed

Feeding force

Max feed roller opening

Opening roller

Delimbing diameter

Saw bar

Cutting diameter

Width

Height

Weight

V-STEEL

3,1 m/s

14,6 kN

330 mm

365 mm

275 mm

480 mm

410 mm

964 mm

1031 mm

406 kg

Harvester Head LOGMAX 2000T

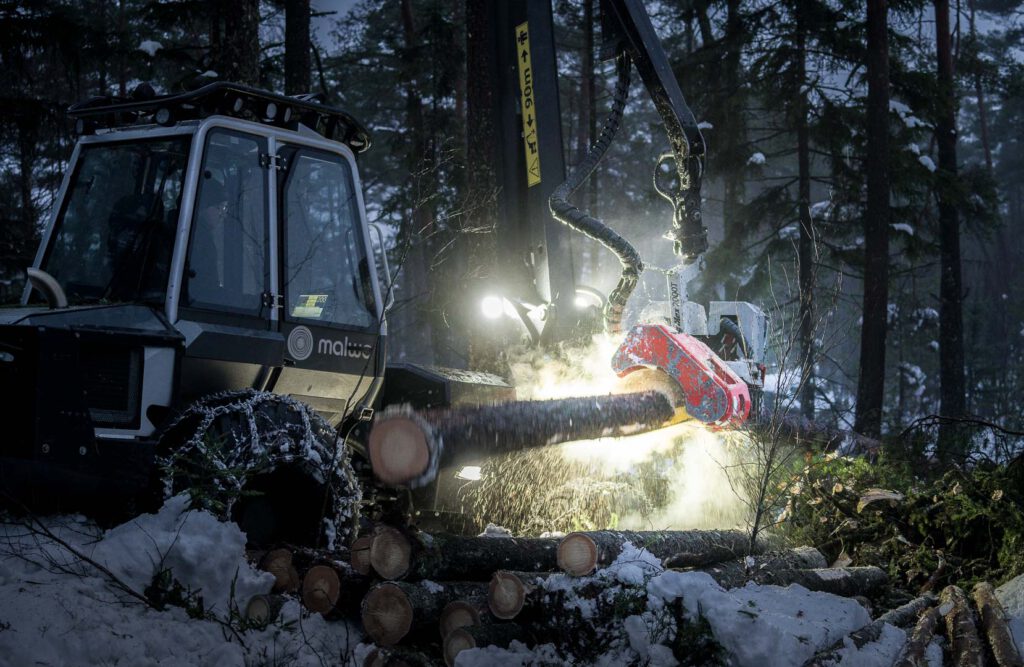

Log Max 2000T was developed for compact harvester (6 - 13 tons)s, the 2000T is the newest addition to our thinning heads series T-series.
Kácecí hlavice Log Max 2000T
Kácecí hlavice Log Max 2000T
Kácecí hlavice Log Max 2000T

30% FASTER

Log Max 2000T has increased performance and drivability compared to its predecessor. It feeds at 4 m/s, which is an improvement of 30%. The 2000T’s feed roller motors have a power of 280cc, which is less than its predecessor, which had 365cc. The pressure is also adjusted, from 210 bar to 280 bar.

The smaller motor improves the feed speed while maintaining its traction thanks to the increased pressure. The raised pressure also gives 30% more power to the saw.

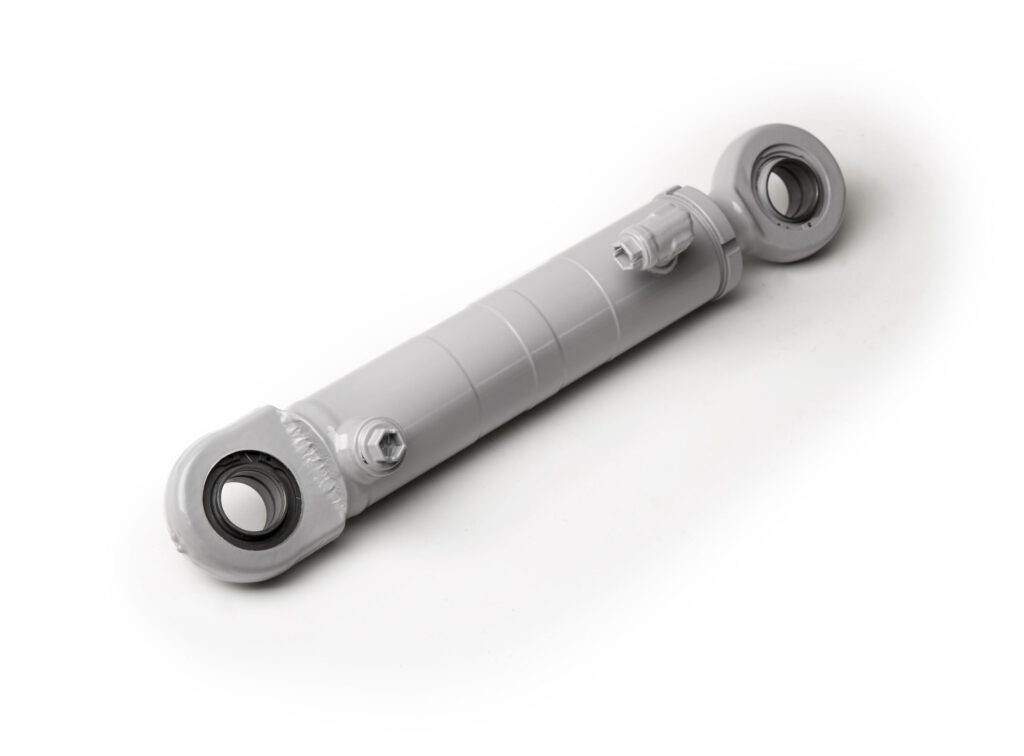

NEW HYDRAULIC CYLINDERS

The majority of the hydraulic cylinders are new on Log Max 2000T. These changes provide increased quality and improved function.

The new hydraulic cylinders also have new robust seals to withstand tough working conditions. The saw bar feed cylinder now has a locking nut for the adjustable rod end and a stronger attachment.

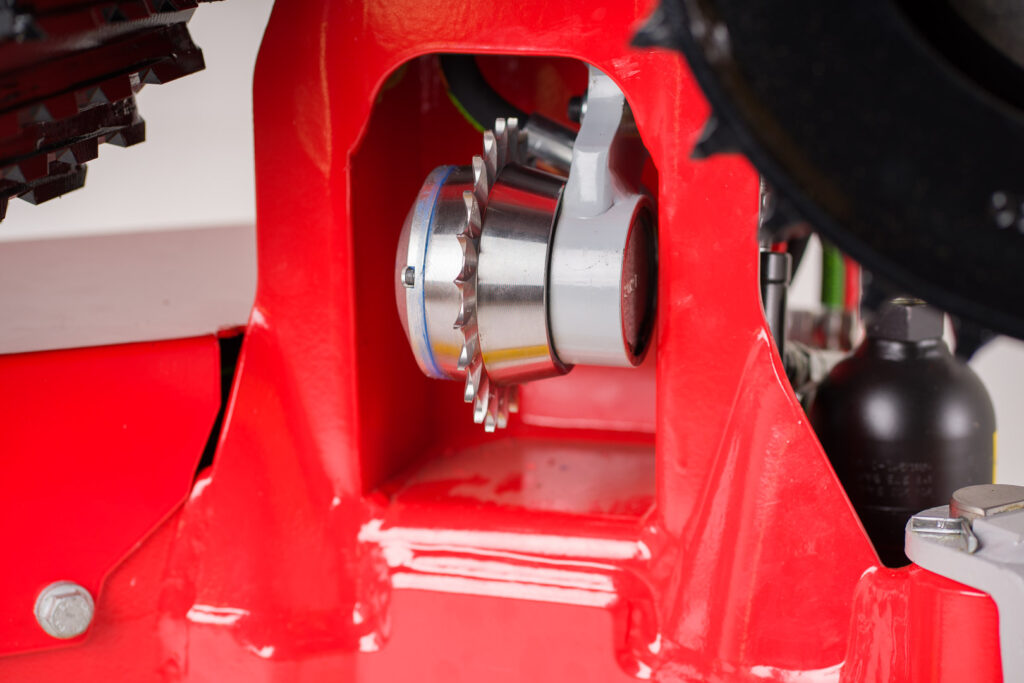

NEW CONTACTLESS SENSOR

The new sensor for the length measurement is contactless and has no mechanical moving components. That will result in minimal or even non-existent service and maintenance of this sensor.
